Sound Devices A20-Nexus QuickDock

Sound Devices A20-QuickDock for Nexus

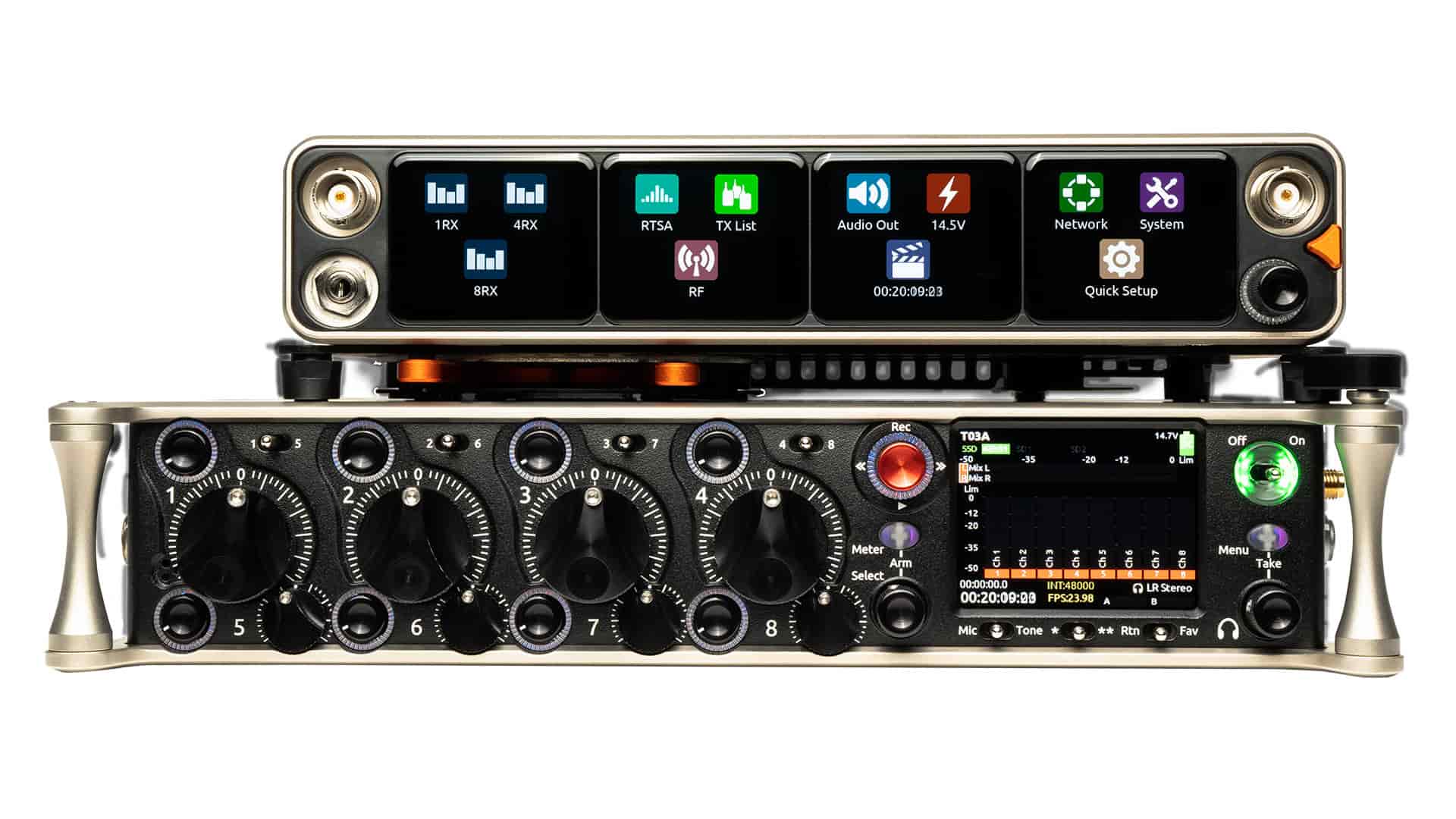

The A20-QuickDock enables the A20-Nexus to be docked to 833, 888, or Scorpio mixer/recorders. The bottom panel incorporates a multi-pin port that provides convenient power, audio, and timecode connections with no additional cables. This accessory allows the A20-Nexus to connect and disconnect from the 8-Series in seconds with no tools, allowing for easy remote mounting when desired.

Considerations when docking the Sound Devices A20-Nexus on an 8-Series mixer/recorder:

• Power must be provided by the 8-Series – A20-Nexus power inputs (TA4 and PoE+) are disabled.
• Most A20-Nexus rear panel connectors are disabled apart from the antenna connectors, the USB-A port and the Ethernet ports.
• When docked to an 8-Series, the A20-Nexus Ethernet ports can only be used for control, not Dante.

Specifications of the Sound Devices A20-Nexus Quickdock

Dimensions

• 2.1cm x 20.6cm x 15.1cm / 0.81in x 8.11in 5.93in (HxWxD)

Weight

• 0.23 kg (unpackaged) / 0.44 kg (packaged)

• 0.50 lbs (unpackaged) / 0.98 lbs (packaged)

Height added to the 8-Series and A20-Nexus rig

• 1.1 cm / 0.42 added height

The Sound Devices A20-NexusQuickDock kit includes:

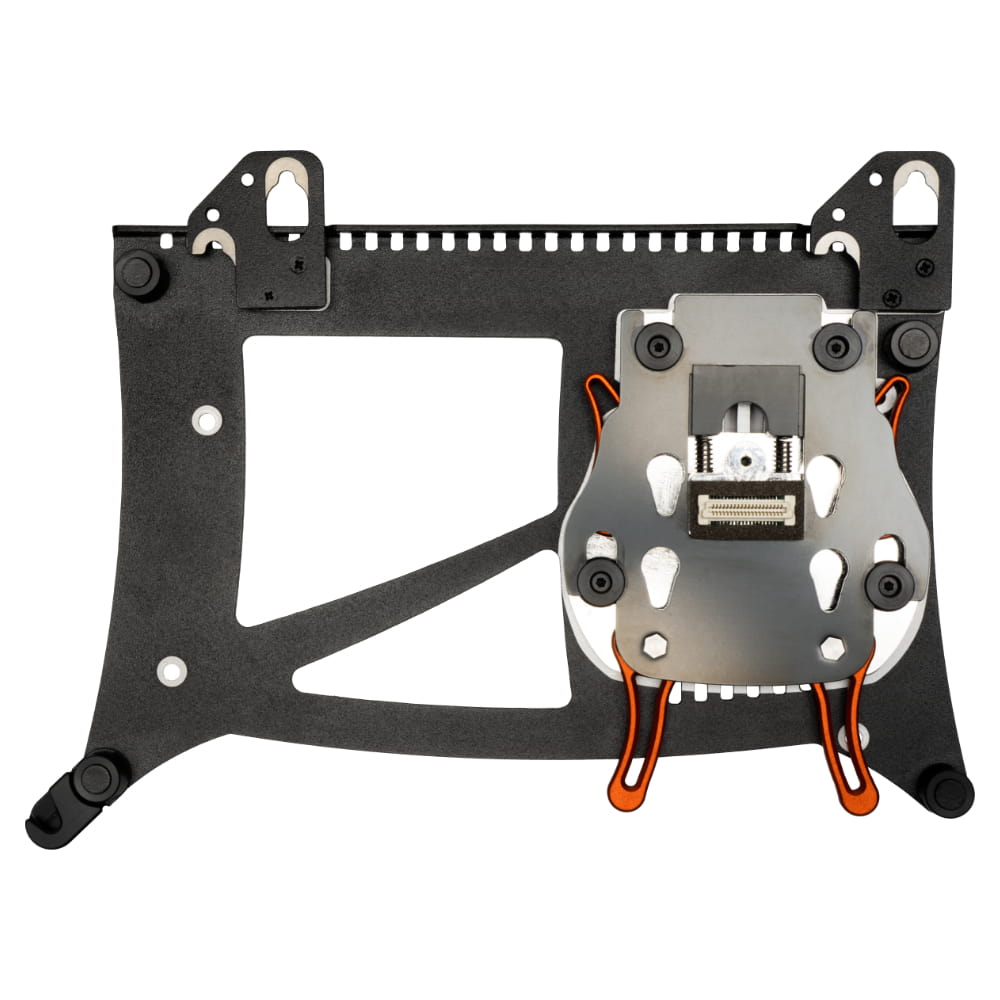

• Mounting plate with detachable Quick Release mechanism and multi-pin connector.
• 2 mm and 1/16” allen keys.
• Four 1/16” allen screws for securing the mounting plate to the bottom of the A20-Nexus.
• Three long and two short mounting pillars for securing the A20-Nexus to the top of the 8-Series.
